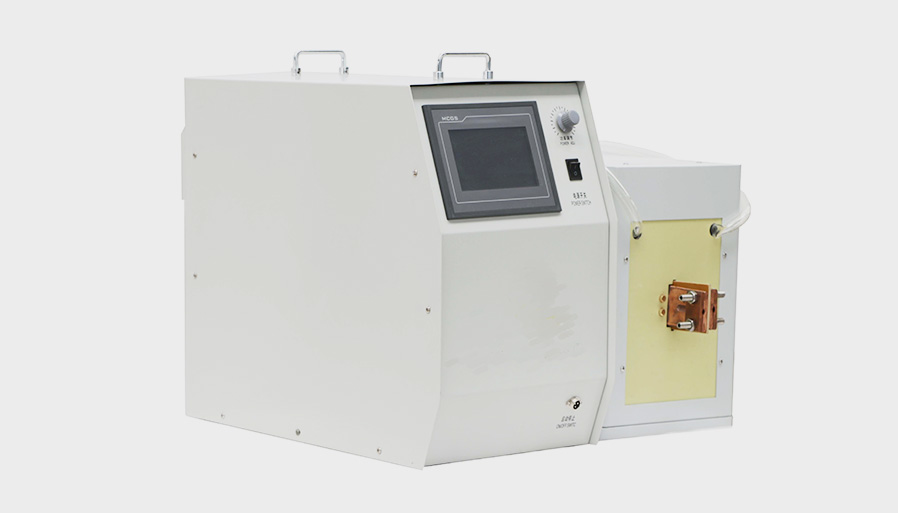

The frequency range of ultrahigh frequency brazing machine is 200-700KHZ, the power s 20-300KW. The machine power supply can be used together with the ultrahigh frequency pipe brazing unit, and can also replace the old pipe welding generation. The Ultra high frequency brazing machine adopts the latest control technology, the machine is small in size, the heating efficiency is high, the energy-saving effect is obvious.
1. overheat of saw tooth, and can also prevent tooth from failing off caused by lack of complete penetration.
2. Can weld saw blade with high-performance and high –hardness saw teeth.
3. Providing welding technology and kits which can be used only after easy installation.
4. Compared into thyristor medium frequency furnace, is saves 10%–30% energy;
5. Scientific design of induction coil to ensure convenient output of big power equipment,energy-saving and operation.
|
Model |
FHC-08 |
FHC-16 |
FHC-40 |
FHC-70 |
FHC-100 |
FHC-150 |
FHC-300 |
|
Input voltage |
380V±10% |
||||||
|
Input power |
8KVA |
16KVA |
40KVA |
70KVA |
100KVA |
150KVA |
300KVA |
|
Max.input current |
37A |
24A |
60A |
115A |
150A |
225A |
450A |
|
Oscillating frequency |
100-600KHz |
||||||
|
water pressure |
0.15-0.30MPa |
||||||
|
Resonance mode |
Series resonance, parallel resonance |
||||||
|
Control accuracy |
0.1% |
||||||
Ultrahigh frequency brazing machine is mainly used in the appliance industry, machinery manufacturing industry, medical equipment industry, hardware industry, aerospace industry, refrigeration and heating and ventilation industry, all kinds of pipes, tubes, and other metal parts automatic induction brazing work, suitable for mass production, high work efficiency.
We have worked in the heating industry for more than 20 years. We insist on doing every piece of machine well with our heart and strength our team with love and sincerity. No matter how the years change, we are always exploring the way of innovation, and strive to use advanced, to serve each of our users. No matter where you are, no matter at what time, when you need us, we are online 24 hours for your contact.
p>
Payment terms: T/T,LC
Warranty period : 1 year
Certification: CE, SGS
Delivery time: Normally 7-15 days
Package: plywood cases
Engineer overseas: all of our engineers have a passport, support overseas service.
The Siemens IGBT (Insulated gate Bipolar transistor) circuit module is a key component used in a wide range of power electronic devices, mainly for efficient energy conversion and control. Circuit module: The IGBT chip, drive circuit, protection circuit, etc. are integrated in a package for easy use.
Get Started

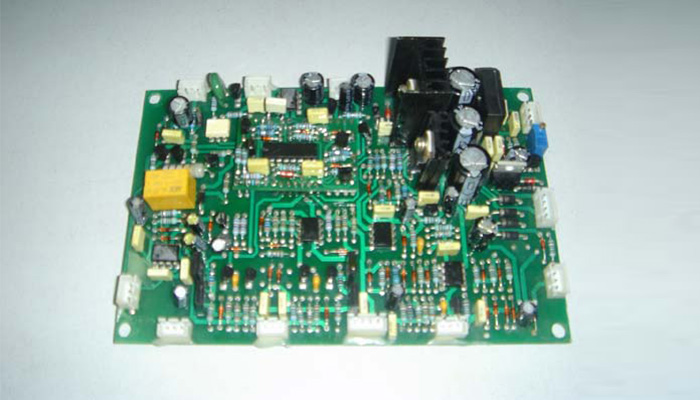

The control board is one of the core components of the induction heating equipment, which is responsible for managing and regulating the operating state of the equipment to ensure the accurate control of the heating process.
Get Started

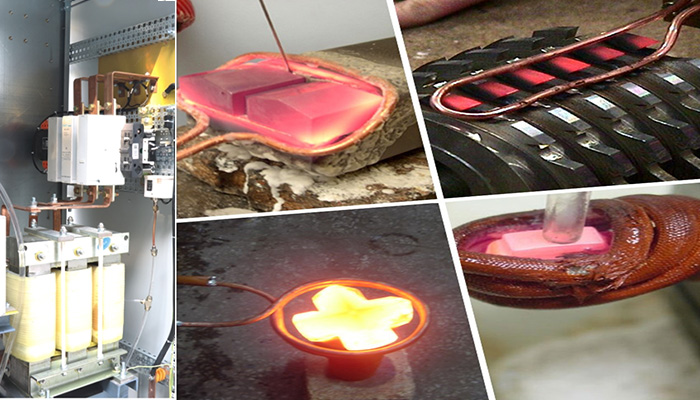

The filter circuit is an important part of ensuring the stable operation of equipment and reducing electromagnetic interference (EMI).
Get Started

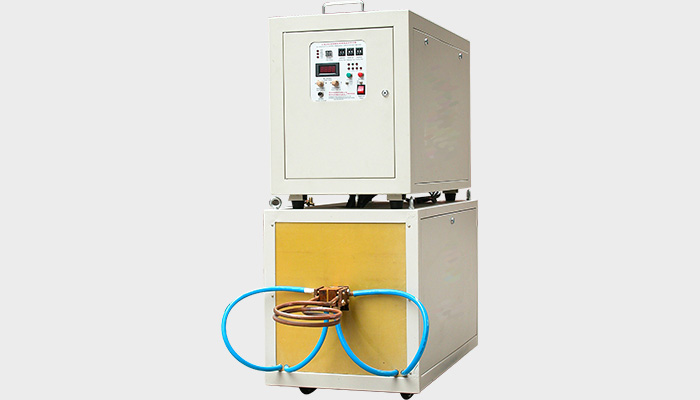

DSP High frequency induction heating machine heating power supply is adopted, and the main inverter circuit is controlled separately.
Product Name: Wire
Product specifications: φ5-20mm
Product name: Car anti-collision bar
Product specifications: φ35×1300mm
Product name: bullet case and pipes
Product specifications: φ10-20mm
Setting in the fully automatic mode, the workpiece into the tooling, the material position detecting sensor to the signal sent to PLC, PLC in accordance with the procedures set automatically.
