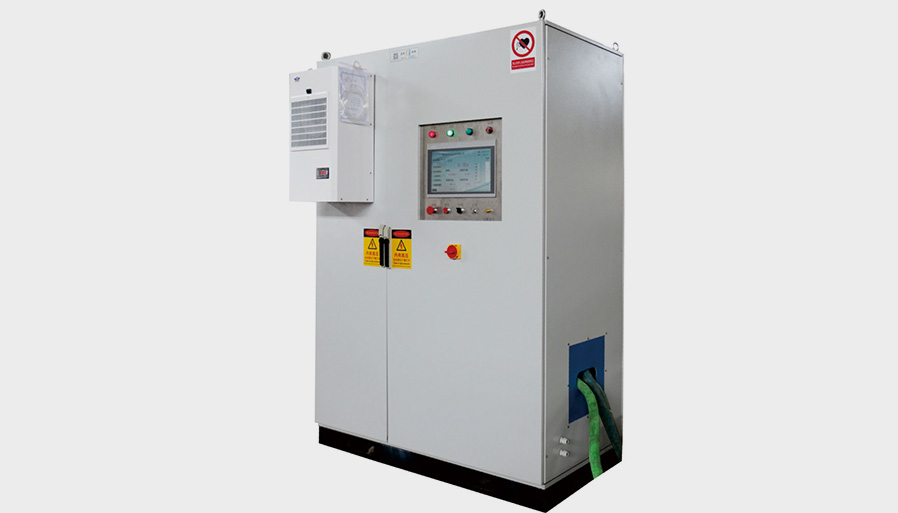

Solid State induction heating machine is with Siemens IGBT integrated circuit, frequency range 20-100KHZ. Mainly used in the induction heat treating, induction brazing welding, small size bar heating projects.
1. Solid state induction heating machine’s heat efficiency is above 90%, saving energy 30-40%
2. Induction coil can be freely disassembly when doing different workpiece.
3. One button heating ,easy to operate.
4. Perfect self-protection function,like over heat, over current, lack water, lack phase.
5. 100% duty cycle, can continuously work 24 hours.
6. It can be equipped with special output remote interface to facilitate joint control with external related machine and realize production line automatic operation.
|
Technical parameters |
FHD50 |
FHD100 |
FHD160 |
FHD200 |
|
Output power (KW) |
50 |
100 |
160 |
200 |
|
Output frequency(Khz) |
50-200 |
50-200 |
50-200 |
50-200 |
|
Input voltage(V) |
380V |
380V |
380V |
380V |
|
Input frequency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
|
Water flow(l/min) |
30 |
40 |
50 |
60 |
|
Cooling temperature(℃) |
＜35 |
＜35 |
＜35 |
＜35 |
|
Working temperature(℃) |
0-40 |
0-40 |
0-40 |
0-40 |
1. Our factory has a technical team, production team, sales team and after sales team and 20 years production experience.
2. Adopts imported components, do qualified induction machine.
3. According to different parts request, we could supply suitable induction heating solutions.
4. Can make sure the delivery time in time, we have goods in stock.
Solid state induction heating machine is widely used in the quenching and annealing of heating treatment industry, hardware tool welding industry, round steel forging, etc.
1. Adopt plywood case and customized case.
2. Inner packing: packing plastic film and foam to avoiding machine damage.
3. Accessories: induction coil 1, foot pedal 1, installing and operating instruction 1 and other customized fittings.

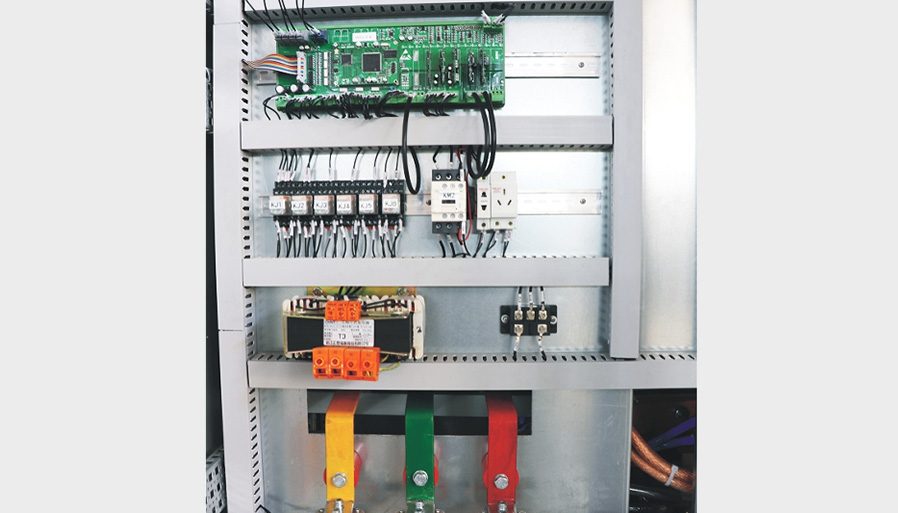

The chassis circuit board is the core part of the induction heating equipment, which is responsible for integrating and controlling the work of each component.Basic functional has three points as follow.Circuit integration: the power supply, control, drive, filter and other circuits are integrated on one or more circuit boards. Signal processing: Processing sensor signals to achieve closed-loop control. Power distribution: Distribute and adjust power output to ensure heating effect. Protection function: Provides protection against over current, over voltage and overheating.
Get Started
The filter circuit is an important part of ensuring the stable operation of equipment and reducing electromagnetic interference (EMI).Basic functions has three points as follow.Noise filtering: Reduces electromagnetic interference at the input and output of the power supply.Harmonic suppression: reduces the impact of harmonics on the power grid and equipment.Voltage stability: Smooth voltage fluctuations to ensure stable operation of the device.
Get Started
DSP High frequency induction heating machine heating power supply is adopted, and the main inverter circuit is controlled separately.
Product name: Car anti-collision bar
Product specifications: φ35×1300mm
Product name: bullet case and pipes
Product specifications: φ10-20mm
Setting in the fully automatic mode, the workpiece into the tooling, the material position detecting sensor to the signal sent to PLC, PLC in accordance with the procedures set automatically.
