1. Digital display, intelligent control
2. Electromagnetic stirring, the uniform temperature of liquid metal
3. Not affected by local voltage fluctuations
|
Aluminum melting (700℃ ) |
|
|
|
|
|
|
|
|
|
Capacity (t) |
0.4 |
0.6 |
0.8 |
1.2 |
1.6 |
2 |
3 |
5 |
|
Power(KW) |
200 |
300 |
400 |
600 |
800 |
1000 |
1500 |
2500 |
|
Frequency (Hz） |
500 |
|||||||
|
Melting rate (t/h) |
0.39 |
0.63 |
0.74 |
1.10 |
1.57 |
1.94 |
2.94 |
4.83 |
|
Melting consumption (kwh/t) |
525 |
525 |
525 |
520 |
520 |
500 |
500 |
500 |
|
Cooling water(m3/h) |
5 |
8 |
9 |
12 |
15 |
20 |
26 |
45 |

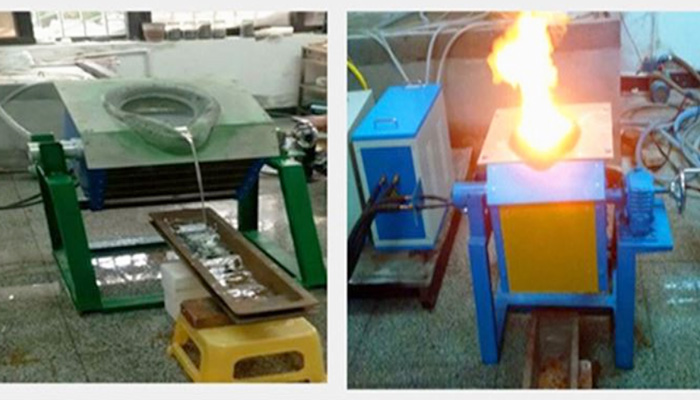

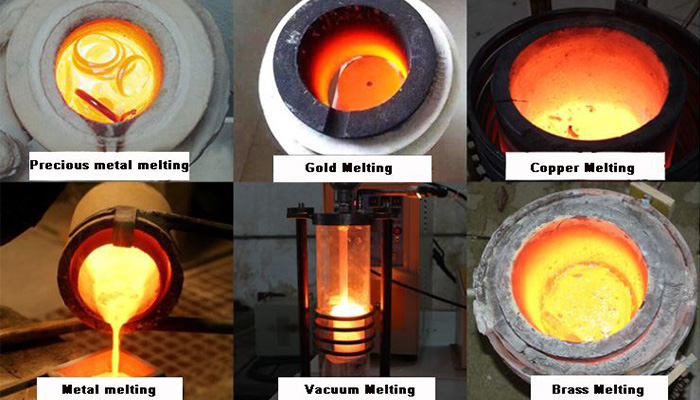

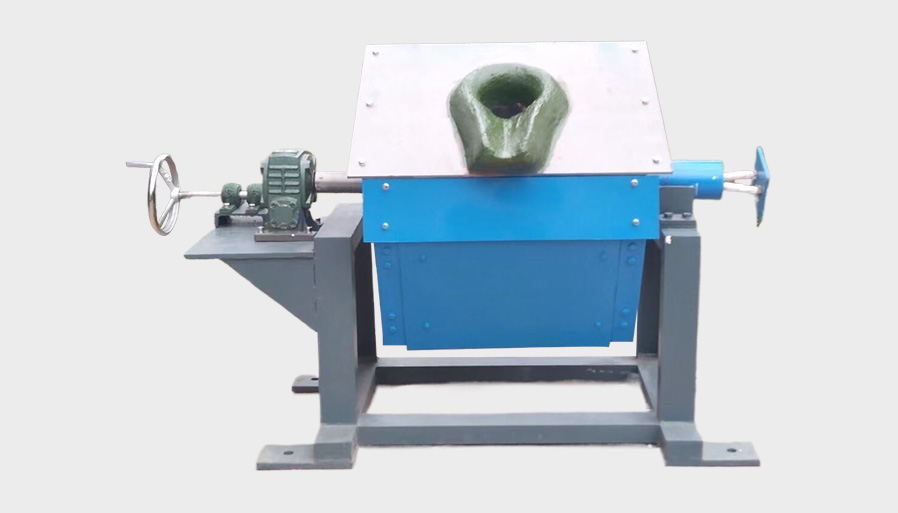

Our small induction melting furnace is mainly used for the smelting and heating of metals such as steel, iron, aluminum, and Al alloys.
1. We are the top induction heating machine supplier, no agents.
2. We have strong technical team for 19 years product experience and make sure the delivery time.
3. The main components are mainly the international brand, stable and safe.
4. We have professional after-sales teams, and solve the customer problem in time.
1. Factory direct delivery goods.
2. 24 hours of technical service
3. Free workpiece test
4. 20 year experience in product making and application
5. In stock, 12 months warranty periods
6. Lifetime technical and accessory support
The Siemens IGBT (Insulated gate Bipolar transistor) circuit module is a key component used in a wide range of power electronic devices, mainly for efficient energy conversion and control. Circuit module: The IGBT chip, drive circuit, protection circuit, etc. are integrated in a package for easy use.
Get Started
Induction heating melting furnace is a kind of equipment that uses electromagnetic induction principle to heat and melt metals. With its advantages of high efficiency, environmental protection and precise control, it is widely used in modern industry and is an important equipment for metal melting and heating.
Get Started
The infrared temperature measurement can be equipped to any model of our induction heating machine, so it can detect the temperature and control the temperature.
Get Started
DSP High frequency induction heating machine heating power supply is adopted, and the main inverter circuit is controlled separately.
Product name: Car anti-collision bar
Product specifications: φ35×1300mm
Product name: Conveying straight pipe
Product specifications: φ120×500-3500mm
Product name: Thick steel plate
Product specifications: 1000×100mm
Product name: bullet case and pipes
Product specifications: φ10-20mm
