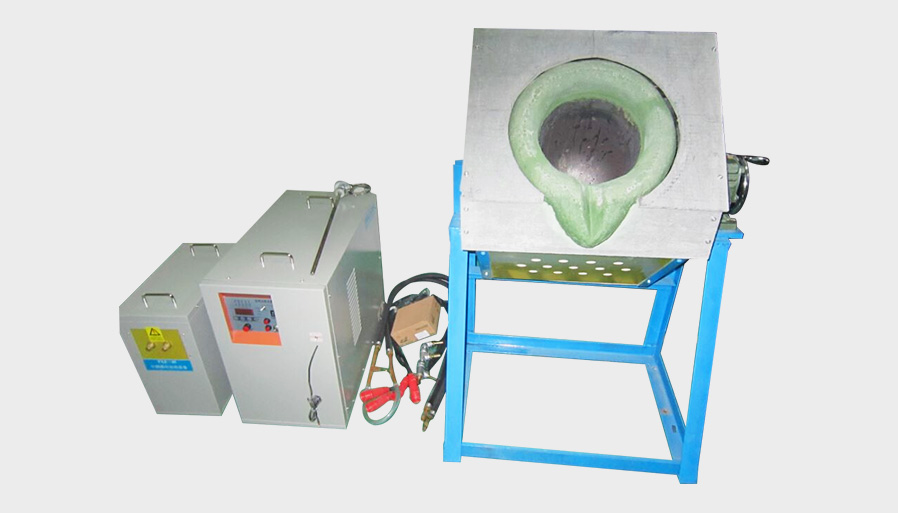

The machine consists of an induction heating power supply and a steel shell furnace. With 100% load design, it can work continuously for 24 hours. It can be matched with infrared temperature measurement to realize automatic temperature control, improve heating quality.With the function setting of heating, heat preservation, and cooling for three periods, the required heating and heat preservation process can be obtained.
1. Simple structure and small floor space, easy to install and maintain, suitable for all casting processes.
2. Fast melting speed, good heat dissipation performance, low production cost.
3. The furnace body is easy to turn over and dump.
4. Flexible power adjustment, east temperature control, low oxidation burning loss, metal ingredients evenly.
5. The aluminum shell price is lower.
|
Copper melting (1250℃ ) |
|
|
|
|
|
|
|
|
|
Capacity (t) |
0.5 |
1 |
2 |
3 |
5 |
7 |
10 |
20 |
|
Power(KW) |
300 |
500 |
1000 |
1500 |
2500 |
3000 |
5000 |
7000 |
|
Frequency (Hz） |
500 |
|||||||
|
Melting rate (t/h) |
0.53 |
1.16 |
2.31 |
3.57 |
5.75 |
6.86 |
12.7 |
18.5 |
|
Melting consumption (kwh/t) |
425 |
420 |
410 |
400 |
390 |
390 |
380 |
378 |
|
Cooling water(m3/h) |
9 |
12 |
20 |
28 |
48 |
60 |
85 |
100 |

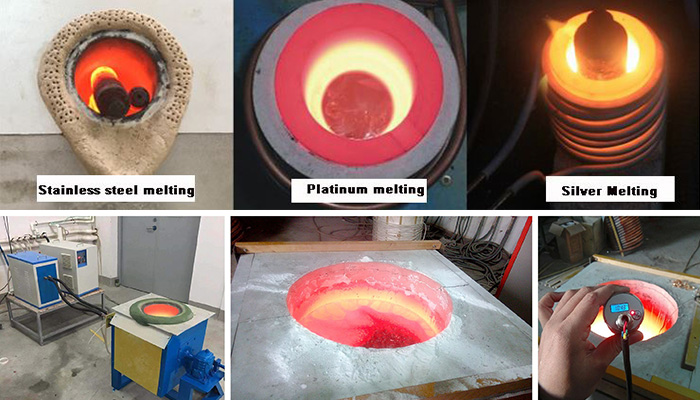

Our intermediate frequency melting furnace is mainly used for the smelting and heating of metals such as steel, iron, aluminum, and Al alloys.
1. Factory direct delivery goods.
2. 24 hours of technical service
3. Free workpiece test
4. 20 year experience in product making and application
5. In stock, 12 months warranty periods
6. Lifetime technical and accessory support
Induction heating melting furnace is a kind of equipment that uses electromagnetic induction principle to heat and melt metals. With its advantages of high efficiency, environmental protection and precise control, it is widely used in modern industry and is an important equipment for metal melting and heating.
Get Started
The Siemens IGBT (Insulated gate Bipolar transistor) circuit module is a key component used in a wide range of power electronic devices, mainly for efficient energy conversion and control. Circuit module: The IGBT chip, drive circuit, protection circuit, etc. are integrated in a package for easy use.
Get Started

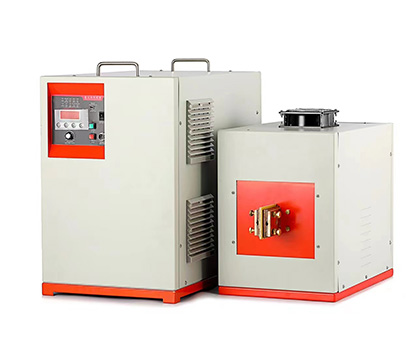

DSP High frequency induction heating machine heating power supply is adopted, and the main inverter circuit is controlled separately.
Product name: Car anti-collision bar
Product specifications: φ35×1300mm

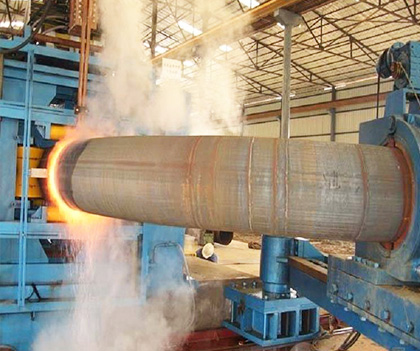

Medium frequency pipe bender adopts medium frequency induction heating machine heating to bend the workpiece under the condition of local heating.

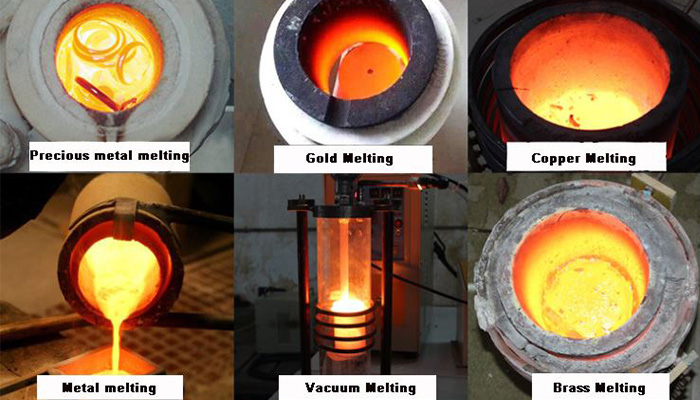

Melting equipment is mainly used for the steel, alloy steel, cast iron and other ferrous metal materials and stainless steel, copper, aluminum, zinc and other non-ferrous metal material smelting.
