1. Bend pipe wall thin rate:<10%, the bent pipe ovality: <10%, the wave degrees:Hot <2%, flatness: L=500<3, bending radius tolerance<±10mm, bending angle error is ±1℃
2. The maximum bending pipe bending diameter is Φ762mm, wall thickness is 25mm; the minimum pipe diameter is Φ273mm, wall thickness is 6mm. The bending radius is 2.5m≤ R ≤20m, can process the maximum length of 14m, can bend 400*400, 300*300 square tube.
3. The material for the bending pipe:
A: Carbon steel seamless pipe , 20G, A106B, A 106C, 235B, 345B, X42, X52 material.
B: Alloy steel : 335P12, P22, P91, WB36 and so on.
RF Induction Heater adopts a series resonance circuit. After resonance, the high-frequency power supply with low voltage and a large current is output through a high-frequency transformer.
This series of RF Induction Heaters adopts IGBT power devices and our company’s third generation of variable current control technology – dual control variable current control technology. In this technique, the power and frequency conversion control independently, IGBT switching device and amorphous inductance are adopted to form the high-frequency chopper circuit to adjust power, using IGBT series resonance and frequency automatic tracking technology for precise control of the soft switch inverter process, make the work reliability of the equipment under high power is greatly increased, makes the machine developed in the field of high power, equipment, and temporary load rate achieved 100%.
1. Medium frequency power 500KW, frequency 1000HZ.
2. Medium frequency transformer 1000V-2500kVA-1S
3. Round coil 6 pieces: Φ273, Φ325, Φ406, Φ508, Φ610,Φ762
4. Square coil 2 pieces: 400*400, 300*300
5. Pure water cooling unit one set, model is 40T
6. Isolation transformer one set.

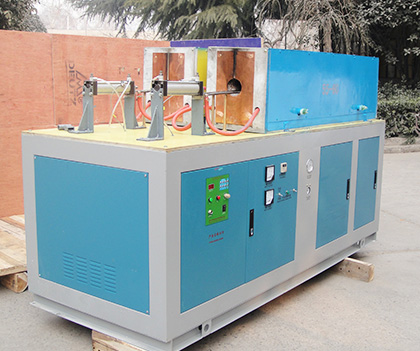

DSP digital magnetic induction heating machine is mainly used for hot forging, melting, gear hardening quenching, and tempering, and another heating process.
1. We are the top induction heating machine supplier, no agents.
2. We have strong technical team for 19 years product experience and make sure the delivery time.
3. The main components are mainly the international brand, stable and safe.
4. We have professional after-sales teams, and solve the customer problem in time.

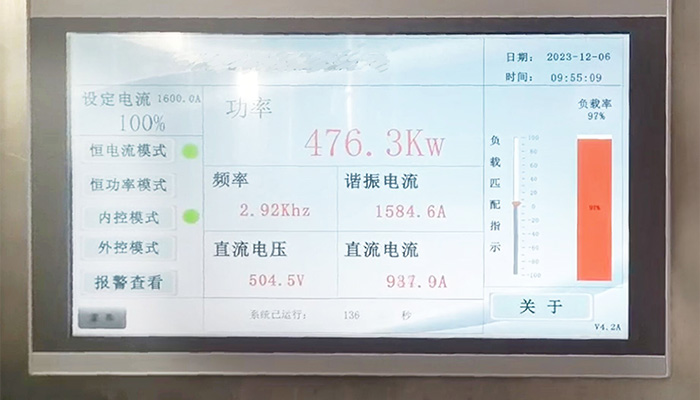

The display screen is an important part of the induction heat treatment heating equipment, through high definition, touch control, real-time monitoring and other functions, improve the operating efficiency of the equipment and user experience.
Get Started

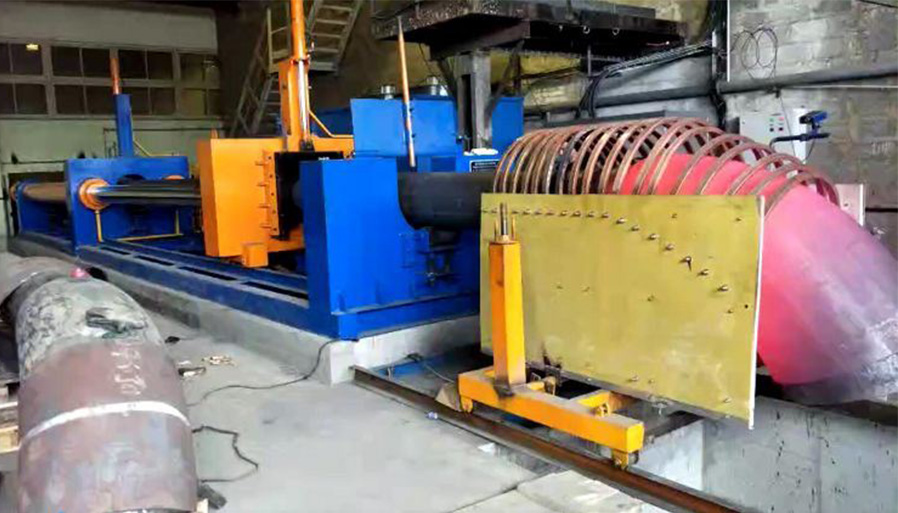

Induction heating equipment for hot bending is an efficient and accurate metalworking method, especially for applications where local heating and bending are required. Process workpiece preparation: clean and fix the workpiece. Heating: Start the induction heating device and heat it to the required temperature. Bending: The bending operation is performed in the heated area. Cooling: natural cooling or forced cooling, styling.
Get Started

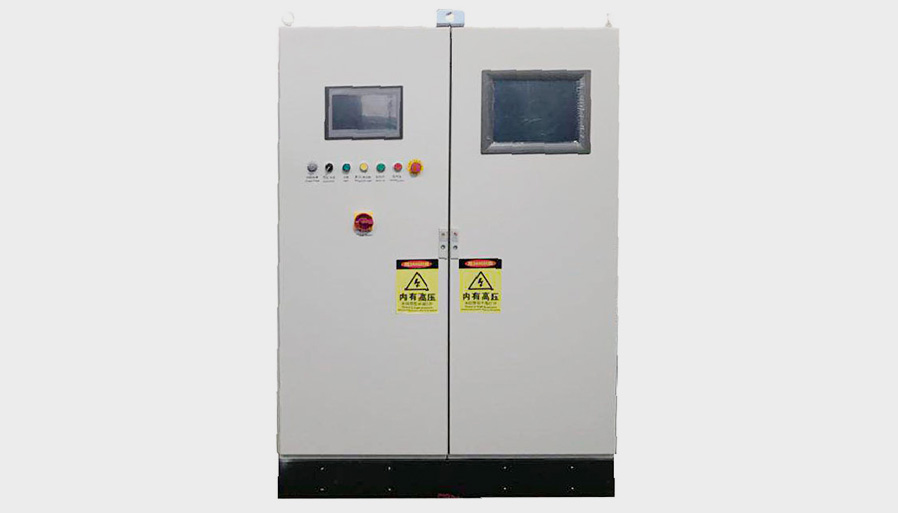

The internal structure of induction heating equipment is complex, including power module, induction coil, control system, cooling system, protection circuit, transformer, capacitor, connection cable, housing and rack and other key components. These components work together to achieve an efficient and precise heating process.
Get Started
DSP High frequency induction heating machine heating power supply is adopted, and the main inverter circuit is controlled separately.
Product name: Thick steel plate
Product specifications: 1000×100mm

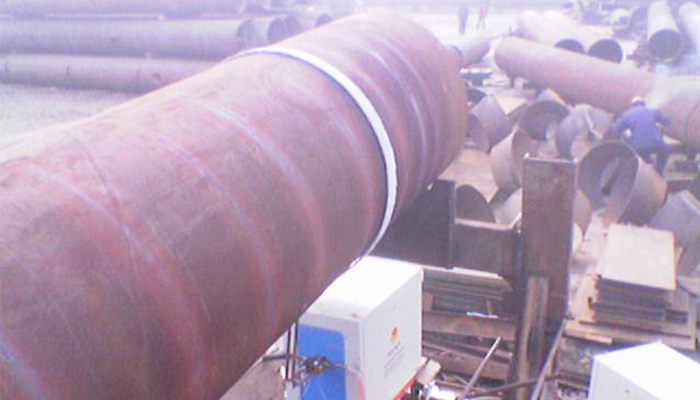

Product name: Conveying straight pipe
Product specifications: φ120×500-3500mm
Product name: bullet case and pipes
Product specifications: φ10-20mm
Adopts series resonance technique, High frequency induction heating machine coil output high voltage and small current, resonance circuit loss is average lower 25 times than parallel resonance, whole machine save energy 10-20%.
